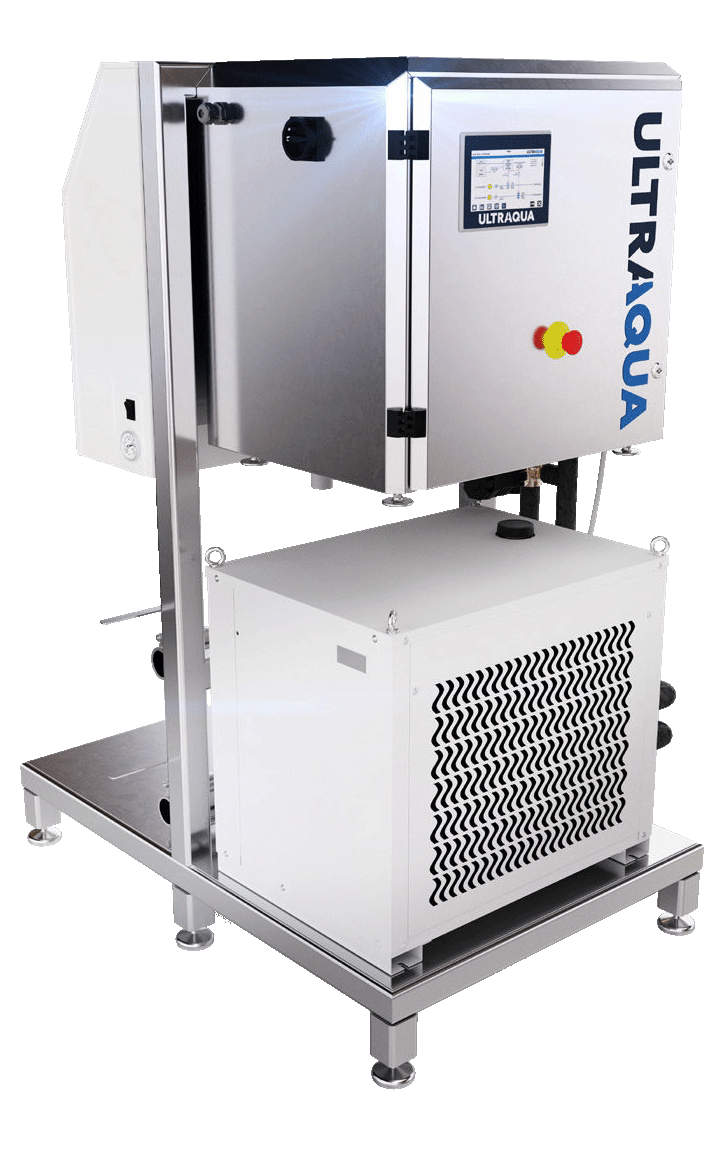

Ozone Plug & Play Skid Solution
With a custom UltraQube skid solution, you can reap the benefits of ozone water treatment in just a few simple steps.
ULTRAQUBE Skid solutions are designed for easy straightforward installation. As the skid merely requires a water and power supply, the existing water treatment process can be improved significantly in a simple quick manner. Choosing a skid solution can significantly reduce the general equipment costs dependent on the existing water treatment setup. Every skid solution comes as a customized solution that matches the exact customer requirements for ozone output capacity.
- ULTRAQUBE Ozone Generator
- PSA Oxygen Generator
- Chiller
- Injection pipe in various sizes
- Ambient ozone alarm
- Automatic ozone dosing due to redox, flow or other analog sensors
Scalability & Modularity
The ULTRAQUBE is scalable with an integrated inverter that produces 88 grams of ozone per hour. If the demand increases, additional modules can be integrated to meet the requirements.
- 230 / 400 VAC
- Cooling water up to 30°C
- Beijer/Siemens Control System 7" HMI
-

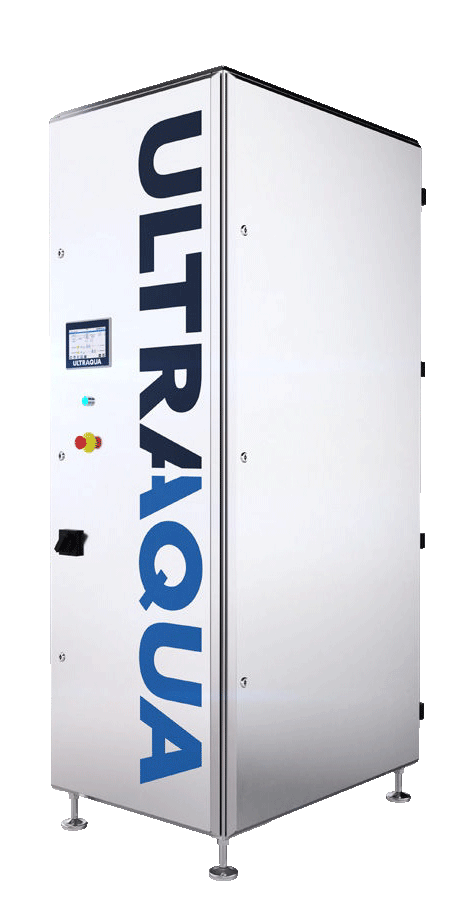

Frame Size 2
(6 modules) - (18 modules)
-
Frame Size 3
(12 modules) - (36 modules)
-
Frame Size 4
(24 modules) - (48 modules)
36 reactors = 3,2 kg O3/hour
48 reactors = 4,2 kg O3/hour
