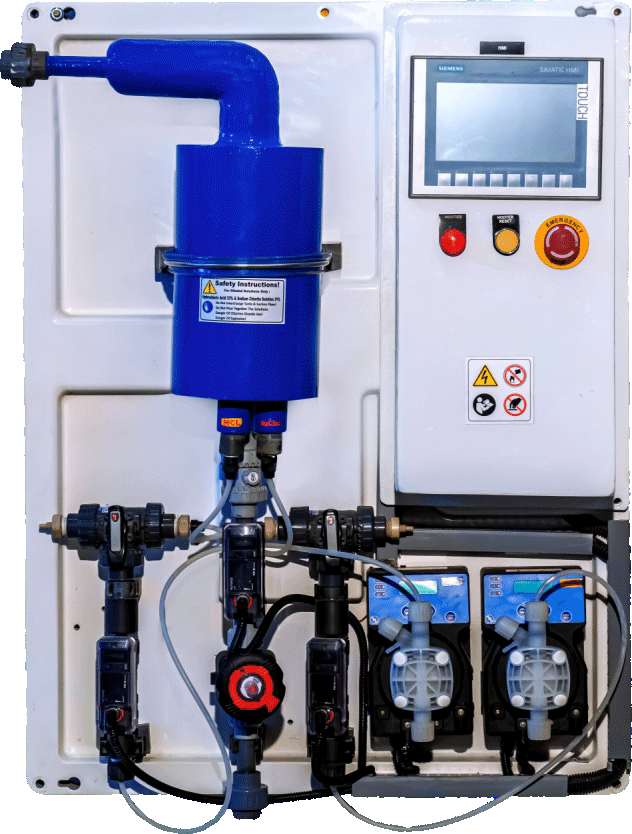

The Chlorine dioxide is a high potential disinfectant which works in different water application. The "M" series ClO2 system unit is specially designed in such a way that same can be used for Industrial as well as Commercial disinfection use. The "M" Series ClO2 system unit is produced with safe production of an aqueous ClO2 solution with constant purity. A multifunction dosing pump provided to each precursor chemical.
Each chemical line is equipped with ultrasonic flow meter for precise chemical flow measurement. 7.5% NaClO2 & 8.5% Hcl chemical mixing takes place in ClO2 generator reactor under dilution water closed circuit loop. After generation, ClO2 enriched solution is fed into inline pipe dosing or tank/sump as per dosing requirement.

Key Benefits →

  • TERSUS® CIO2 "M" series ensures safe & effective CIO2 production.
  • Wide range available for required use.
  • The factory precise set limit.
  • The factory precise set limit for constant generation.
  • Intermittent and continuous dosing options with unique process design for user friendly operation.
  • High precision PLC operated dosing pumps for precursor feeding.
  • 50 It carboy/ 200 It drum/1000 It IBCs for precursor storage with suction lances (optional)
  • The pipes for dilution water & chemicals are colour coded.
  • Plug in play design with minimal installation.
  • Safe Underwater Technology based CIO2 generation
  • CFR 21 compliant PLC.

Specifications

Capacity 50g - 500g ClO2/h
Concentration of ClO₂ processed upto 0.75g ClO2/l
Sodium chlorite used 7.5%
Hydrochloric acid used 8.5%
Process water pressure 2-4 bar
Process water temperature upto 35°C
Operating temperature upto 35°C
Humidity 90%


Applications

  • Pharmaceuticals
  • Food, Beverages and Breweries pseudomonas/pathogens control
  • Hospitals, Hotels & Public Services, Indoor/Outdoor Swimming Pool
  • Drinking Water
  • CIP Sanitization & ETP, STP Waste Water Treatment Legionella Prevention
  • Black Water & Grey Water
  • Cooling Towers Cooling Water (CW) Scaling & Biofueling Control

Net weight Max: 90 kg
External dimensions: (W x H x D) 700 x 900 x 70mm (±5O mm)
Manufacturer Warranty: 12 months
Calibration Factory Tested

Control & Electronics: Power supply 230 V, 5O Hz & Protection
max 6 A Power 0.12 kVA
Display 7" Touch Screen HMI, enabled system operation graphics & alarm functions

ModelCapacity
TERSUS ® ClO2M100100gm/h
TERSUS ® ClO2M200200gm/h
TERSUS ® ClO2M300300gm/h
TERSUS ® ClO2M500500gm/h

Scope of operator's activities: Periodic replenishment of reagents, system flushing if necessary and calibration of metering pumps.
