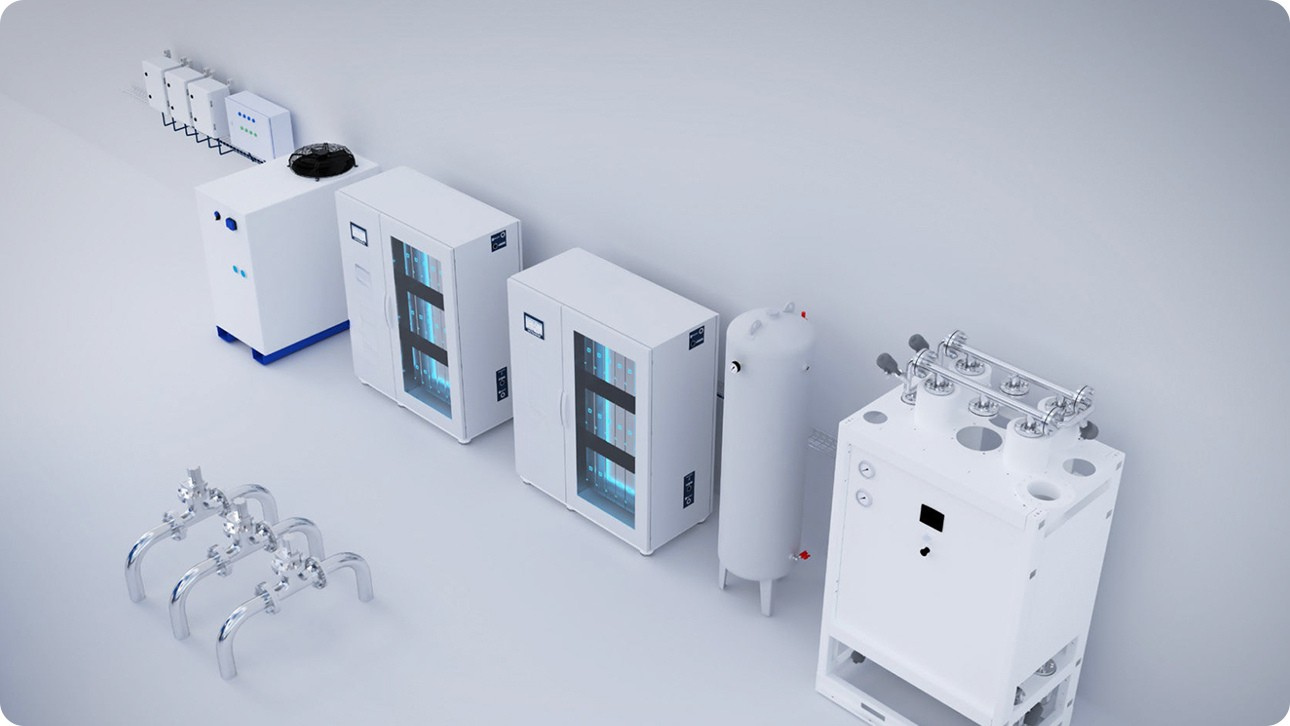

The ULTRAQUBE™ is the only ozone system in the world that is specifically engineered for the aquaculture industry. It features energy-efficient high-concentration ozone technology, designed as a scalable concept that fits customization over time to suit the exact requirements.

Key Benefits →

  • The only ozone generator specifically engineered for the Aquaculture industry
  • Scalable concept for trouble-free customization of ozone demand
  • 9-20 wt% ozone concentration
  • Full ozone system with value added products
  • Non-corrosive plastic GFRP enclosure IP65
  • Robust and compact unit for easy integration in complex environments
  • Safe, sustainable, and chemical-free technology

Scalability & Modularity

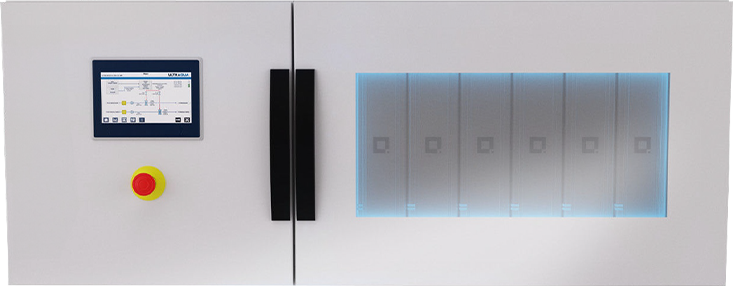

The ULTRAQUBE is scalable with an integrated inverter that produces 88 grams of ozone per hour. If the demand increases, additional modules can be integrated to meet the requirements.

  • 230 / 400 VAC
  • Cooling water up to 30°C
  • Beijer/Siemens Control System 7" HMI

  • Frame Size 2

    (6 modules) - (18 modules)

  • Frame Size 3

    (12 modules) - (36 modules)

  • Frame Size 4

    (24 modules) - (48 modules)

36 reactors = 3,2 kg O3/hour

48 reactors = 4,2 kg O3/hour
