The ChloroxTM S Series comprises a specially engineered self deaning and durable electrolysis cell designed for superior Sodium Hypochlorite (Naod) generation. The unit features optimized flow- paths, highly efficient hydrogen removal outlets, and self deaning electrodes.

The S model generates NaOC using water, common salt, and electrical power. Both the anode and cathode (electrodes) are coated using PURITA's high-performance precious metal coating technology, resulting in a uniquely designed reversing electrode electrolysis cell that delivers increased Naod production while also reducing total power and salt consumption

Key Benefits →

  • Safe and reliable on-site production of sodium hypochlorite (NaOC)
  • StableInputs: Water, Salt and Electricity Different grades/qualities of salt can be used
  • No need for regular acid deaning
  • No water softeners are requiredorm | Planet
  • No hazardous Cl2 gas
  • Low concentration NaOCl is non hazardous
  • Complete hydrogen dilution included for safety
  • Level control for automated production

Specifications

Output Capacity 50 g/hr
No. of Electrolyzer Cells 1
Fresh Water Supply 1.0 to 4.0 bar
Voltage 90-264 AC
Frequency 47-63 Hz
Salt Saturator 100 l
Saturated Brine Dosing Strength 26%
Storage Tank 100 l
Water Treated to 1.0 ppm 50,000 l/h
Water Treated to 2.0 ppm 25,000 l/h

S Series System Components

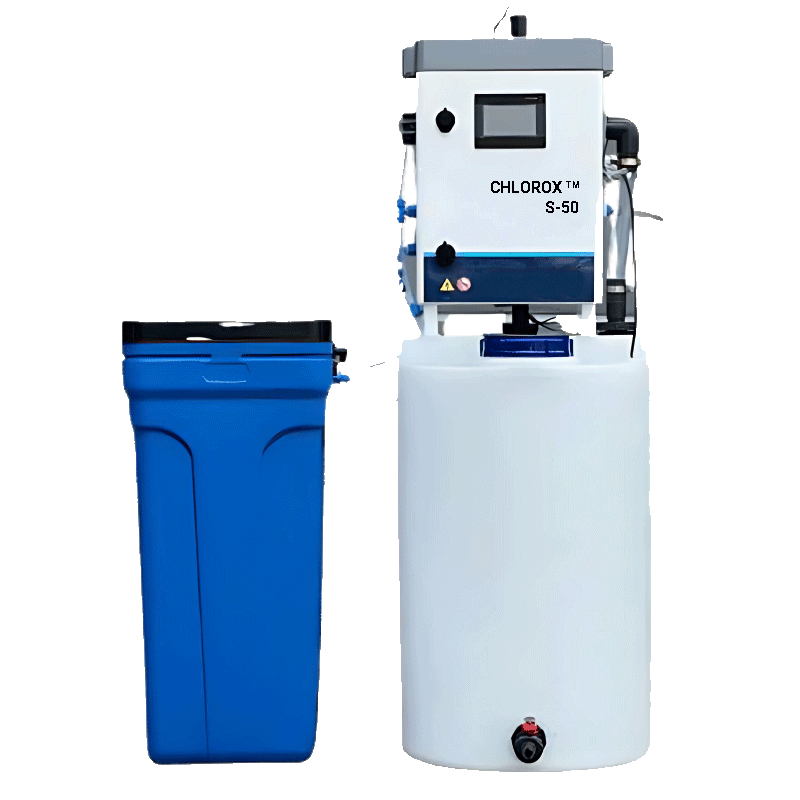

ChloroxTM S Series is a fully self-contained electrochlorination system capable of generating NaOCl with minimal operator intervention.

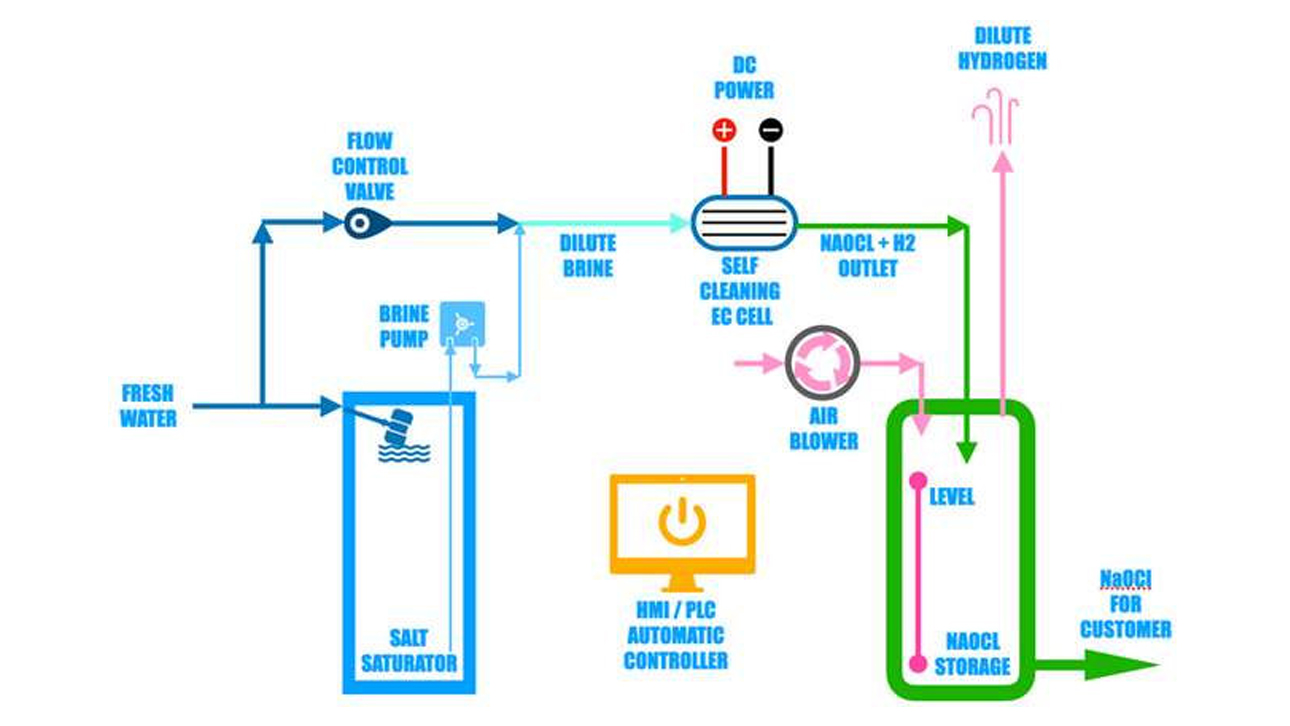

The system is supplied complete with a salt saturator to create a suitable brine, a saturated brine pump, full HMI/PLC with automatic microprocessor control, pipework, a hydrogen dilution blower, and degassing column coupled with NaOCl storage tank to store the generated disinfection product.

There is a level control built into the NaOCI storage tank, allowing the system to start and stop automatically according to the level in the tank. The HMI/PLC visually displays the system status at all times and alerts the user via an alarm if the salt is running low and needs replenishing.

The ChloroxTM S system is supplied as a turn-key solution with all connections fully installed "out of the box". The only external connections required are fresh water, dilute H2+ air tubing and a connection to electrical power
