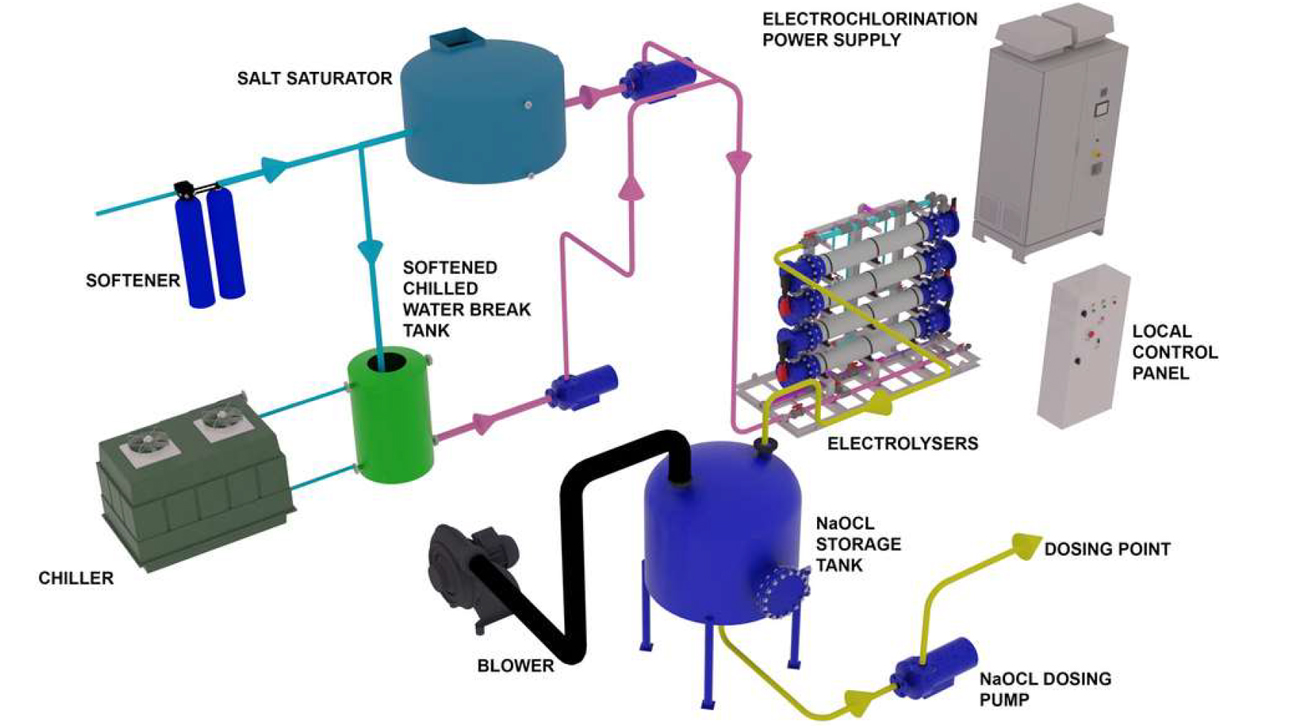

The Chlorox TM B-Series is an electrochlorination system that generates 0.8% sodium hypochlorite using salt, water, and electricity. Applications include water disinfection, wastewater disinfection, food processing, oilfield water sterilization, cooling water treatment in power plants, hospitals, and more. Capacities range from 1 kg/hr to upwards of 50 kg/hr. The modular design of B-Series systems allows for significant customization.

Key Benefits →

  • LOW DISINFECTION BY-PRODUCTS (DBPs)
    Chlorate levels in hypochlorite produced by the B-Series are low as confirmed via laboratory studies.

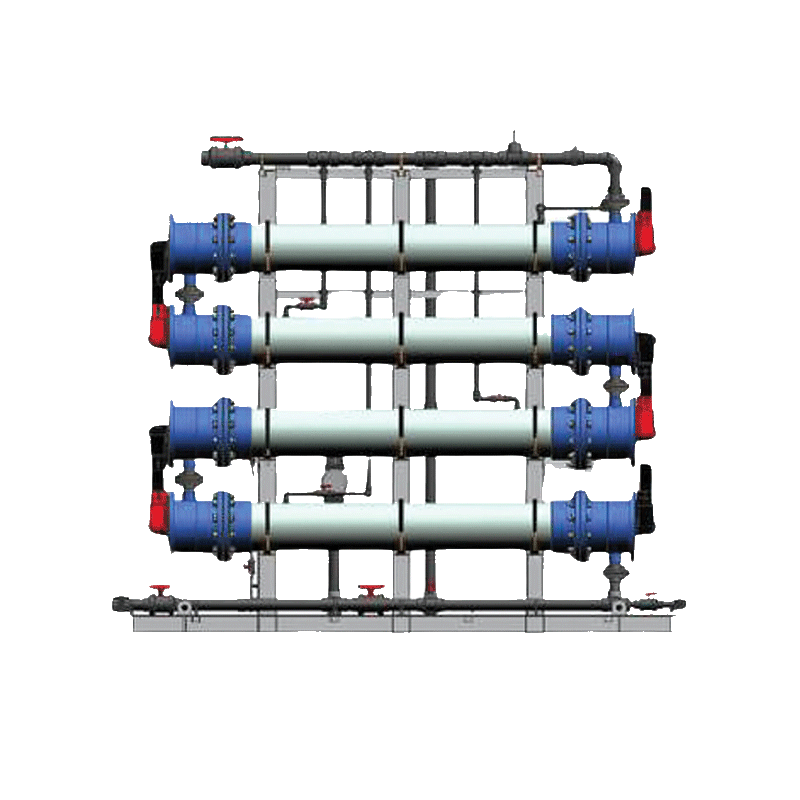

  • TRANSPARENT ELECTROLYZING TUBE
    Each electrode can be observed through a transparent cell allowing for ease of view during acid cleaning.
  • MODULAR DESIGN
    The system s modular design allows for customizable production capacities

Specifications

CHLOROX MODEL NO. B-2.5 B-6 B-lO B-15 B-20 B-21 B-25 B-30 B-40 B-50
Rated Cl2 Output (kg/hr) 2.5 6 10 15 20 21 25 30 40 50
Rated Cl2 Output (kg/day) 60 144 240 360 480 504 600 720 960 1200
Electrolyser Anodes Titanium Coated with Ti+Pd+Ir Mixed Metal Oxide (DSA)
Electrolyser Cathodes Titanium
Expected Electrode Life 5 - 8 years
DC Power Consumption (kWh/kg Cl2) 3.4 - 4.2
Sodium Hypochlorite Strength (g/l) 8
Sodium Hypochlorite Strength (%) 0.8
Sodium Hypochlorite Flow (l/hr) 313 750 1250 1875 2500 2625 3125 3750 5000 6250
Saturated Brine Flow (l/hr) 31 75 125 188 250 263 313 375 500 625
Softened Water Flow (l/hr) 281 675 1125 1688 2250 2363 2813 3375 4500 5625
Dilute Brine Salinity (g/l) 28
Salt Consumption/kg Chlorine (kg) 3.5
