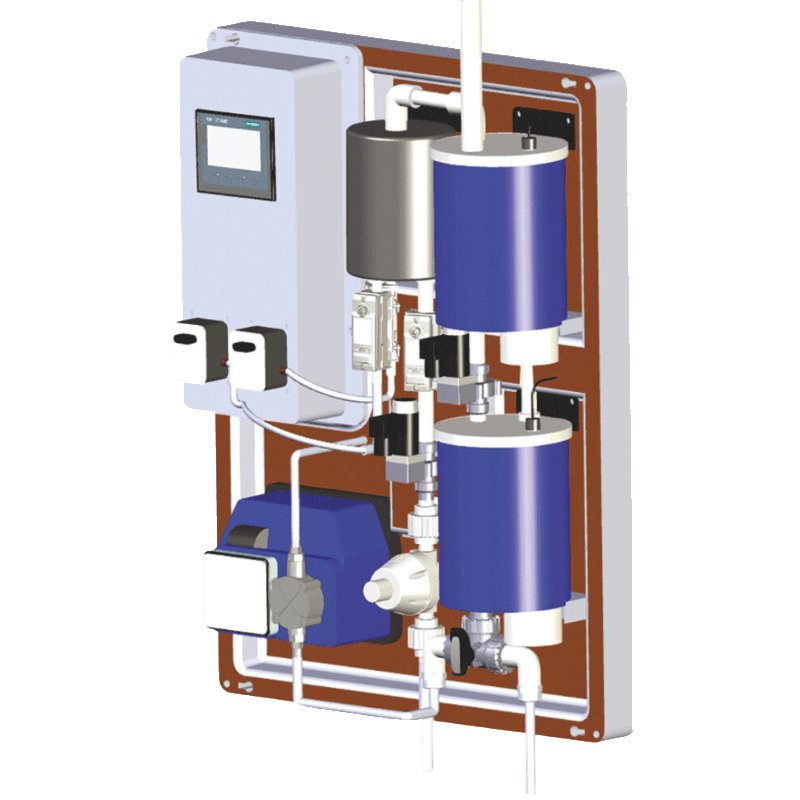

The CIO2 system Unit 'S" Series is a device for the safe production of chlorine dioxide at the dosing point. The generator is equipped with two peristaltic pumps that evenly and continuously dose the reagents into the reactor. After generation and dilution, chlorine dioxide is directed to a maturation tank and then to a storage tank, from where it is fed into the network using a membrane dosing pump. Each chemical line is equipped with ultrasonic flow meter for precise chemical flow measurement. 7.5% NaCIO2 & 8.5% Hcl chemical mixing takes place in CIO2 generator reactor under dilution water closed circuit loop. After generation, CIO2 enriched solution is stored in an on-board tank and dosed as per dosing requirement. Operating on a totally auto-operating mechanism this system is enabled with options with online connectivity with Laptop/Smart Phones. Totally safe & efficient production of CIO2 ensured with TERSUS CIO2 underwater technology

Key Benefits →

  • Safe & effective CIO2 production.
  • The factory precise set limit.
  • Safety Interlock technology.
  • Intermittent and continuous dosing options.
  • Unique process design - friendly operation.
  • High precision PLC operated dosing pumps.
  • 50 It carboy/ 200 It drum/1000 It IBCs for precursor storage.
  • The pipes for dilution water & chemicals are colour coded.
  • Plug-In play design - minimal installation.
  • Pressure underwater CIO2 generation.
  • Option of CFR 21 compliant PLC

Specifications

Capacity 500g - 2000g ClO2/h
Concentration of ClO₂ processed upto 0.75g ClO2/l
Sodium chlorite used 7.5%
Hydrochloric acid used 8.5%
Process water pressure 2-4 bar
Process water temperature upto 35°C
Operating temperature upto 35°C
Humidity 90%

Applications

  • Drinking Water
  • Hospitals, Hotels & Public Services, Indoor/Outdoor Swimming Pools
  • Business centre, Malls, Theme parkw
  • Pharmaceuticals
  • Food, Beverages and Breweries
  • CIP Sanitization & ETP, STP Waste Water Treatment
  • Sanitation equipments
  • Labs & Research Centres
ModelCapacity
TERSUS ® ClO2MS55gm/h
TERSUS ® ClO2MS510gm/h
TERSUS ® ClO2MS515gm/h
TERSUS ® ClO2MS520gm/h
TERSUS ® ClO2MS525gm/h
TERSUS ® ClO2MS530gm/h

Net weight Max: 90 kg
External dimensions: (W x H x D) 700 x 900 x 70mm (±5O mm)
Manufacturer Warranty: 12 months
Calibration Factory Tested

Control & Electronics: Power supply 230 V, 5O Hz & Protection
max 6 A Power 0.12 kVA
Display 4" Touch Screen HMI, enabled system operation graphics & alarm functions

Scope of operator's activities: Periodic replenishment of reagents, system flushing if necessary and calibration of metering pumps.
